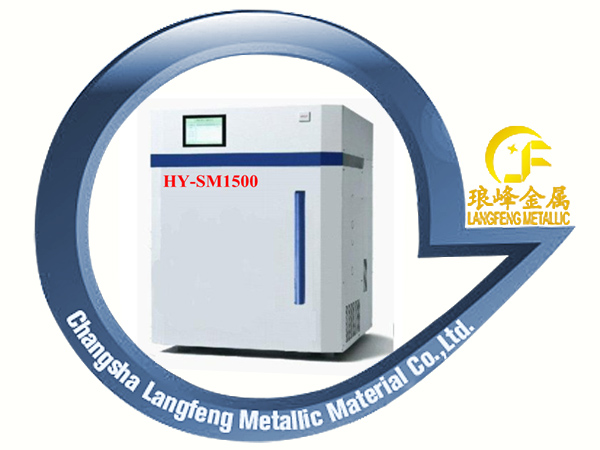

Microwave high temperature Muffle Furnace
Techinical Data
Langfeng Metallic’s product standard
Technical specification Technical specification Type:HY-SM1500
Device list Type: HY-SM1500
Technical specification Technical specification Type:HY-SM1500
| Voltage | 220±10V 50/60Hz |
| Rating power | 5KW |
| Microwave output power | 0.2～1.40kW variable |
| Microwave output frequency | 2.45GHz±25MHz |
| Max working temperature | 1600℃ |
| CW working temperature | 1550℃ |
| Temperature control | IR pyrometer |
| Temperature range | 300℃～1800℃ |
| Temperature accuracy | ±0.5% |
| Atmosphere system | Air |
| Max sintering space | 120×120×40(L×W×H) |
| Circulating cooling water flow | ≥0.8 M3/hour |
| Circulating cooling water pressure | 0.08Mpa～0.2Mpa |
| Circulating cooling water inlet temperature | 5℃～35℃ |
| Circulating cooling water total hardness | <60mg/L(could use tap water) |
| Control system | 40 segment parameters setting, 10 inch touch screen with storage function, three optional model,manual/auto/constant temperature,display of real-time curve |
| Microwave leakage | ＜2mW/cm2 |
| System outside Dimension | 700×680×680 (L×W×H) |
Device list Type: HY-SM1500
| Main furnace body | 1set Machine assembly (stainless steel) |
| Cabinet | 1set Machine assembly |
| Cooling system | 1set Water cooling |
| Electricity system | 1set Connect with whole machine |
| Insulation system | 1set 1600℃ preservation module |
| Microwave source | 1set 1.5KW |
| IR pyrometer | 1set Shanxi Ruiguang |
| Sagger | 4sets |
| Microwave leak detection instrument | 1set HT-M2 |
| Teflon window | 2pcs 47.2×90.2×2 |
| Shielding chamber | 1 Metal elastic shielding cycle |
| Agitator | 1set Connect with whole machine |
| USB | 1 pc embedded |
Product introduction
Introduction
This microwave high temperature Muffle furnace is a typical microwave test station with such advantages, such as rapid heating speed, high efficiency, and can make machined material in well consistency. It could provide a variety of work environment in the process of sintering, such as air, vacuum, protective gas, weak deoxidation atmosphere..etc. It mainly used in the process of sintering for below materials: magnetic materials, electronic ceramics, structural ceramics, metal compounds, nitrides and other materials, especially for new materials’ developing, equipment,and trial producing.
Requirements on working environment
1,Ventilated, clean, no dust, no explosive places
2,Ambient temperature : 0～40℃
3,Relative Humidity: 5～85%
4, Working place request: 800*800 (mm)
Main Feature
1,provide 3 operation model: manual, auto and constant temperature which can be free switched;
2,Touch screen with operating system, could set and save multiple curves, auto save running record;
3,Rapid heating speed, greatly improving the efficiency
4,Multi original special crucible can be chosen,material placed in the crucible will not be polluted
5,Could handle different coupling degree material with microwave, which will lead the popularization of microwave high temperature technique;
6,Set anticorrosion exhaust way to exhaust gas produced in the heating process quickly;
7,Using stepless adjustable, high stability and long life time industry level microwave source, measure sample temperature directly;
8,Real time temperature chart display can dynamic monitor the heating process.
9,Secure and reliable microwave shielding chamber design, multi leakage-proof protection
Application
This kind of machine is mainly used in compounding and sintering of below material and trial production.
1,Carbide, Nitride, Oxide: SiC、VC、Si3N4、AlN、VN、CrN、ZnO、MgO、MnO2、ZrO2 、V2O5、TiO2, etc;
2,Metal oxide carbo-thermal reduction, metal sulfides’ desulfurization;
3,Lithium-ion battery material: Lithium cobalt oxide, lithium manganate oxide, NCM, LiFePO4;
4,Molecular sieve catalyst material coasting: TS-1、HTS-1，ZSM-5, etc
5,Daily-used ceramics, arts and crafts ceramic;
6,Fluorescent powder : LED, three primary colors, long after glowing phosphor powder,etc;
7,electronic ceramics, magnetic materials, powder metallurgy, carbide, ceramic structure sintering;
8,Ashing and incineration of chemical analysis sample;
This microwave high temperature Muffle furnace is a typical microwave test station with such advantages, such as rapid heating speed, high efficiency, and can make machined material in well consistency. It could provide a variety of work environment in the process of sintering, such as air, vacuum, protective gas, weak deoxidation atmosphere..etc. It mainly used in the process of sintering for below materials: magnetic materials, electronic ceramics, structural ceramics, metal compounds, nitrides and other materials, especially for new materials’ developing, equipment,and trial producing.
Requirements on working environment
1,Ventilated, clean, no dust, no explosive places
2,Ambient temperature : 0～40℃
3,Relative Humidity: 5～85%
4, Working place request: 800*800 (mm)
Main Feature
1,provide 3 operation model: manual, auto and constant temperature which can be free switched;
2,Touch screen with operating system, could set and save multiple curves, auto save running record;
3,Rapid heating speed, greatly improving the efficiency
4,Multi original special crucible can be chosen,material placed in the crucible will not be polluted
5,Could handle different coupling degree material with microwave, which will lead the popularization of microwave high temperature technique;
6,Set anticorrosion exhaust way to exhaust gas produced in the heating process quickly;
7,Using stepless adjustable, high stability and long life time industry level microwave source, measure sample temperature directly;
8,Real time temperature chart display can dynamic monitor the heating process.
9,Secure and reliable microwave shielding chamber design, multi leakage-proof protection
Application
This kind of machine is mainly used in compounding and sintering of below material and trial production.
1,Carbide, Nitride, Oxide: SiC、VC、Si3N4、AlN、VN、CrN、ZnO、MgO、MnO2、ZrO2 、V2O5、TiO2, etc;
2,Metal oxide carbo-thermal reduction, metal sulfides’ desulfurization;
3,Lithium-ion battery material: Lithium cobalt oxide, lithium manganate oxide, NCM, LiFePO4;
4,Molecular sieve catalyst material coasting: TS-1、HTS-1，ZSM-5, etc
5,Daily-used ceramics, arts and crafts ceramic;
6,Fluorescent powder : LED, three primary colors, long after glowing phosphor powder,etc;
7,electronic ceramics, magnetic materials, powder metallurgy, carbide, ceramic structure sintering;
8,Ashing and incineration of chemical analysis sample;
