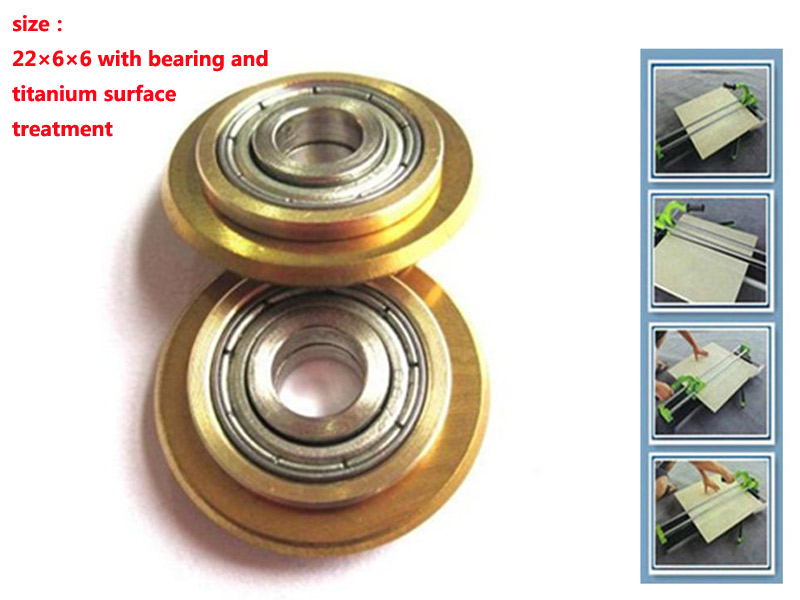

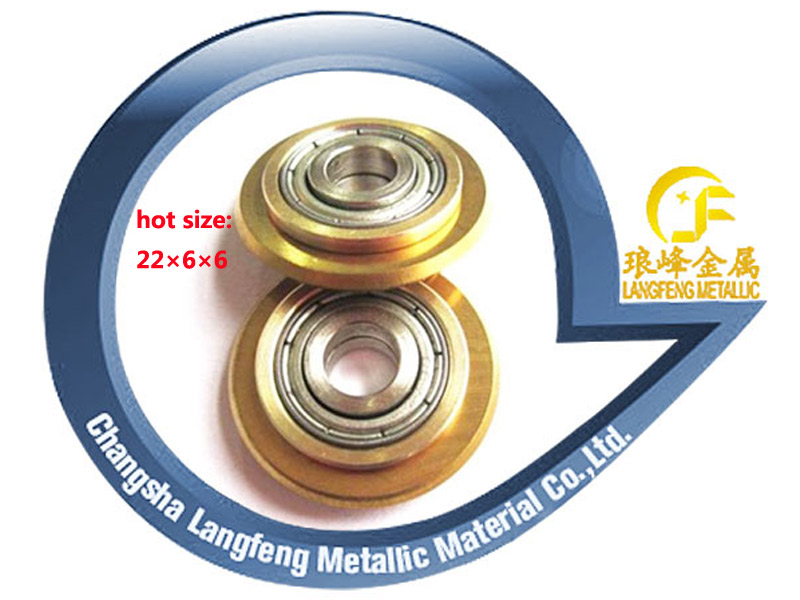

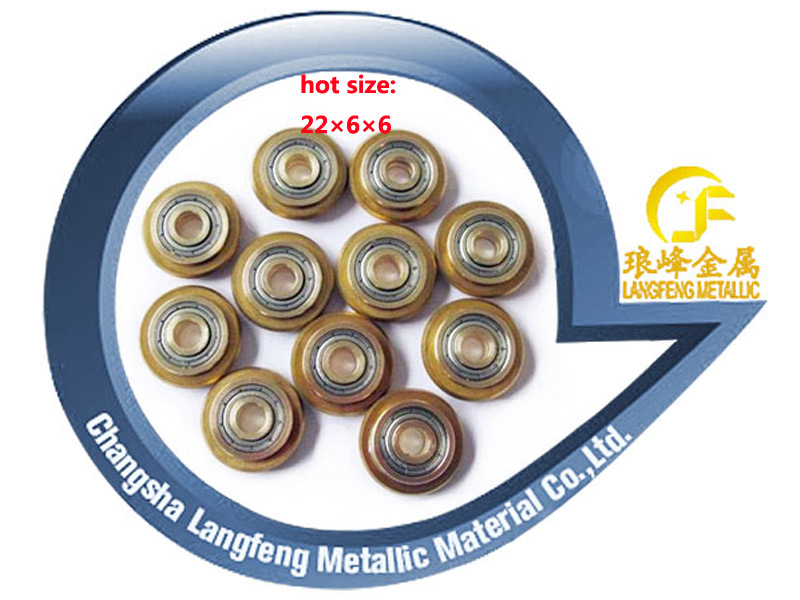

Tungsten carbide tile cutter wheel
Techinical Data
Langfeng Metallic’s product standard
| Changsha Langfeng Metallic Material Ltd.> | |||||||||||
| Ceramic tile knife Type and Grade | |||||||||||
| Type | Basic size（mm） | Grade | |||||||||
| outside diameter(OD) | tolerance of OD | inside diameter (ID) | tolerance of ID | Thickness | tolerance of Thickness | Angle | HSSC-1 | HSSC-2 | HSSC-3 | HSSC-4 | |
| Service life（≥m） | |||||||||||
| Φ22×Φ14×2.6 | 22 | ±0.05 | 14 | ±0.05 | 2.6 | ±0.05 | 90° 100° 110° 120° | 2000 | 800 | 400 | 200 |
| Φ22×Φ14×2.0 | 22 | ±0.05 | 14 | ±0.05 | 2 | ±0.05 | |||||
| Φ22×Φ13×2.0 | 22 | ±0.05 | 13 | ±0.05 | 2 | ±0.05 | |||||
| Φ22×Φ12×2.2 | 22 | ±0.05 | 12 | ±0.05 | 2.2 | ±0.05 | |||||
| Φ22×Φ10.5×2.0 | 22 | ±0.05 | 10.5 | ±0.05 | 2 | ±0.05 | |||||
| Φ22×Φ6×4.6 | 22 | ±0.05 | 6 | ±0.05 | 4.6 | ±0.05 | |||||
| Φ22×Φ6×2.0 | 22 | ±0.05 | 6 | ±0.05 | 2 | ±0.05 | |||||
| Φ20×Φ5×3.0 | 20 | ±0.05 | 5 | ±0.05 | 3 | ±0.05 | |||||
| Φ18×Φ6×3.0 | 18 | ±0.05 | 6 | ±0.05 | 3 | ±0.05 | |||||
| Φ18×Φ6×3.8 | 18 | ±0.05 | 6 | ±0.05 | 3.8 | ±0.05 | |||||
| Φ16×Φ6×4.9 | 16 | ±0.05 | 6 | ±0.05 | 4.9 | ±0.05 | |||||
| Φ16×Φ6×3.0 | 16 | ±0.05 | 6 | ±0.05 | 3 | ±0.05 | |||||
| Φ16×Φ6×2.0 | 16 | ±0.05 | 6 | ±0.05 | 2 | ±0.05 | |||||
| Φ16×Φ6×1.5 | 16 | ±0.05 | 6 | ±0.05 | 1.5 | ±0.05 | |||||
| Φ16×Φ4×3.0 | 16 | ±0.05 | 4 | ±0.05 | 3 | ±0.05 | |||||
| Φ15×Φ6×2.9 | 15 | ±0.05 | 6 | ±0.05 | 2.9 | ±0.05 | |||||
| Φ15×Φ6×2.0 | 15 | ±0.05 | 6 | ±0.05 | 2 | ±0.05 | |||||
| Φ15×Φ6×1.5 | 15 | ±0.05 | 6 | ±0.05 | 1.5 | ±0.05 | |||||
| Φ14×Φ6×1.5 | 14 | ±0.05 | 6 | ±0.05 | 1.5 | ±0.05 | |||||
| Φ13.5×Φ6×2.0 | 13.5 | ±0.05 | 6 | ±0.05 | 2 | ±0.05 | |||||
| Φ13.5×Φ6×1.5 | 13.5 | ±0.05 | 6 | ±0.05 | 1.5 | ±0.05 | |||||
| Φ13.5×Φ6×1.0 | 13.5 | ±0.05 | 6 | ±0.05 | 1 | ±0.05 | |||||
| Φ12×Φ3×3.0 | 12 | ±0.05 | 3 | ±0.05 | 3 | ±0.05 | |||||
| Φ10×Φ4×3.0 | 10 | ±0.05 | 4 | ±0.05 | 3 | ±0.05 | |||||
| Φ8×Φ1.5×1.1 | 8 | ±0.05 | 1.5 | ±0.05 | 1.1 | ±0.05 | |||||
| Φ7×Φ1.9×1.2 | 7 | ±0.05 | 1.9 | ±0.05 | 1.2 | ±0.05 | |||||
| Φ6.4×Φ1.5×1.3 | 6.4 | ±0.05 | 1.5 | ±0.05 | 1.3 | ±0.05 | |||||
| Can be produced according to customer requirements | |||||||||||
Product introduction
Application:For cutting a variety of ceramic tile and glass
